Replaces OEM Part Numbers: Cub Cadet 717-3035
Cub Cadet 717-3313
Cub Cadet 717-3467
Cub Cadet 917-3035
Cub Cadet 917-3313
Cub Cadet IH-1254974-C91
MTD 717-3467
Stens 255-473
Warner 5215-46
Stens 255-473
Fits Models: Cub Cadet 1340, 140-631-100, 141-631-100, 1512, 882, 782-D, 144-882-100, 145-882-100, 146-882-100, 2050606U, 147-882-100, 144-882-399, 1572, Serial No. 756,300-799,999, 148-710-100, 147-710-100, 1772, Serial No. 756,300-799,999, 149-711-100, 1782, Serial No. 800,000-821,059, 140-712-100, 141-712-100, 2182, Serial No. 800,000-821,059, 140-741-100, 141-741-100, 364, 53AA1A5L100, Z42, 53AC305G100 and 53BA1B2G100
MTD Z16, Z165 and ZT1850

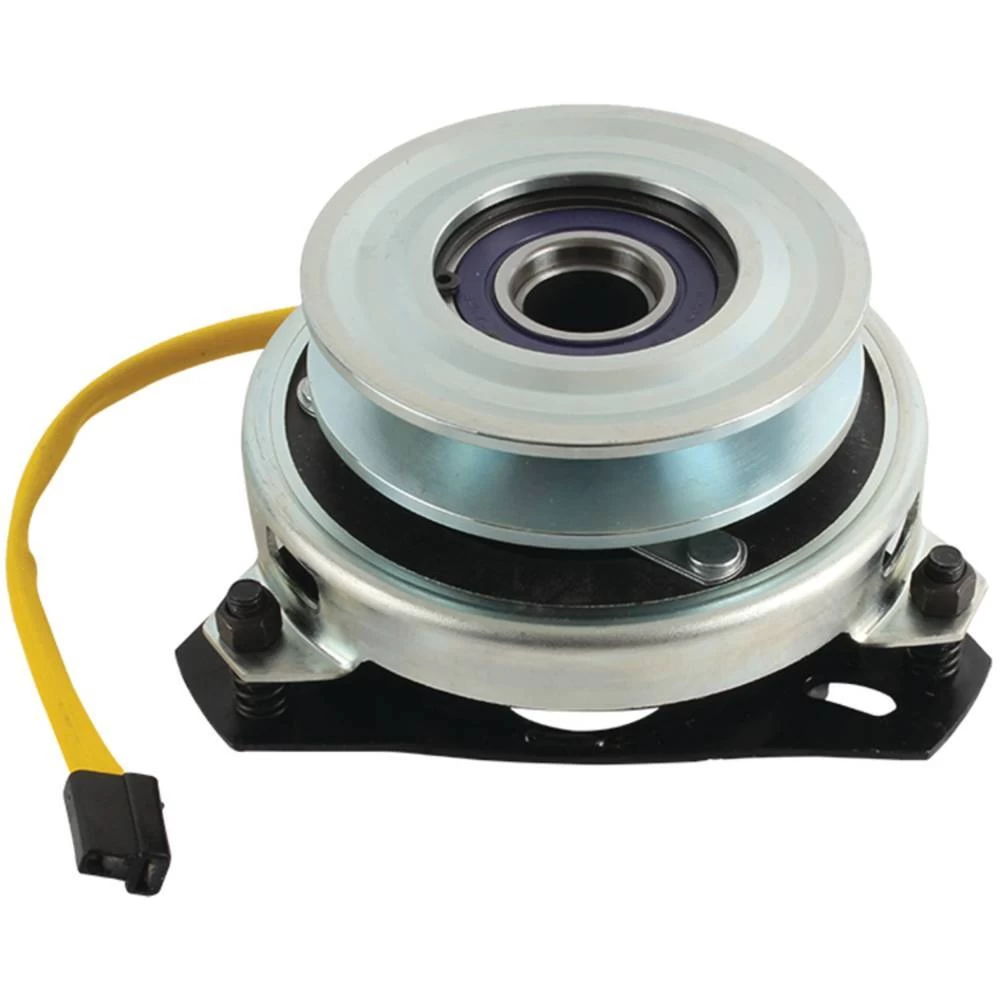

Specifications: - Cool Coil Technology
- Does not fit all applications - Verify part number by referring to model specifications
- For mower side wiring harness purchase XMC1003
- High performance bearings with high temperture grease
- Replaceable Pulley Bearing
- Stainless steel rivets and bands
- Super Smooth "Xtreme Precision" Machined Pulley
- To prevent premature clutch failure, follow the instruction sheet included with the clutch
- Belt Width: 1/2" or 5/8"
- ID: 1"
- Includes: Clutch side integrated, water tight and impact resistant wire harness
- Pulley Diameter: 4-1/2"
- Rotation Direction: Counter Clockwise
Additional Info: Use With Xmc1003 Wire Harness Repair Kit
Pack Size: 1
Part Number: X0577
