Replaces OEM Part Numbers: Exmark 103-2453
Exmark 103-3244
Exmark 103-6589
Exmark 109-7666
Toro 103-2453
Toro 103-3244
Toro 103-6589
Toro 109-7666
Warner 5218-101
Warner 5218-217
Fits Models: Exmark Lazer Z XS, Serial No. 440,000 and higher; Lazer Z AS, Serial No. 720,000-789,999; Lazer Z, Kawasaki units, Serial No. 370,000 and higher; and Lazer Z XS, Serial No. 600,000 and higher
Toro Z Master Z550, Serial No. 280000001-280999999, Z555, Serial No. 240000001-250999999, Z558, Serial No. 270000001-270999999 and Z587L, Serial No. 240000001-240999999
Specifications: - Cool Coil Technology
- Does not fit all applications - Verify part number by referring to model specifications
- Heavy Duty "FatBoy Series" Upgrade
- Replaceable Pulley Bearing
- Super Smooth "Xtreme Precision" Machined Pulley
- To prevent premature clutch failure, follow the instruction sheet included with the clutch

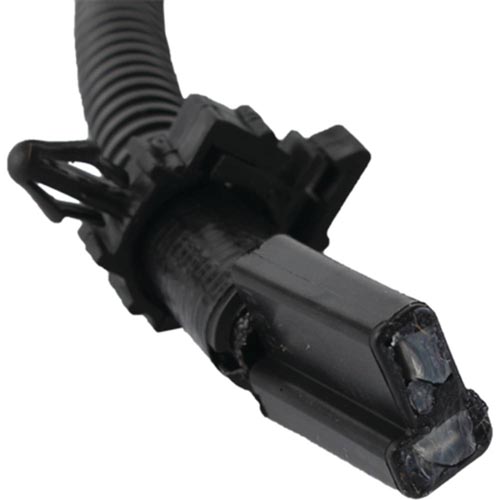

- Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
- Belt Width: 1/2" or 5/8"
- ID: 1-1/8"
- Pulley Diameter: 7-1/8"
- Rotation Direction: Clockwise
Additional Info: You may also like X0460-K PTO Clutch with Wiring Harness
Replaces Competitors Part Numbers: Sunbelt B1XT0460, Stens 255-723X, WAIGLOBAL 19-460
Pack Size: 1
Part Number: X0460
