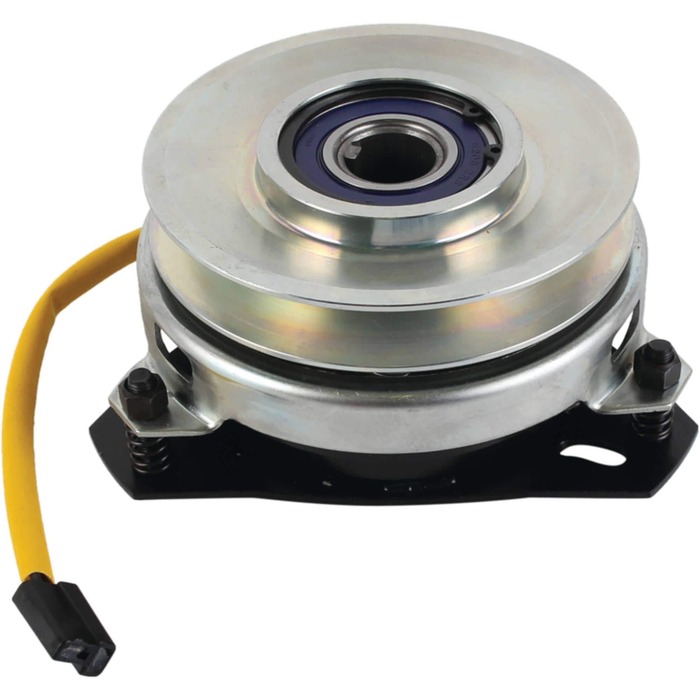

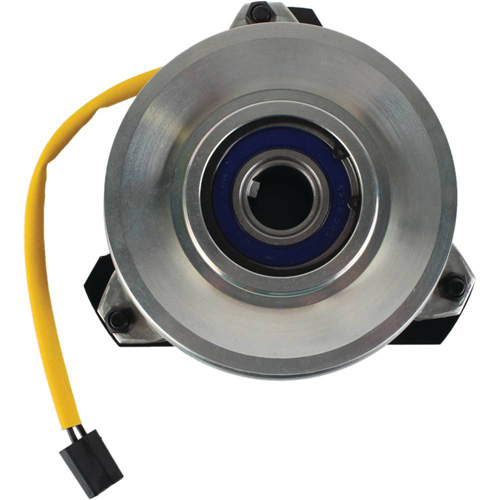

Xtreme PTO Clutch for Ariens 03450500 / X0196

Replaces OEM Part Numbers:
Ariens 03450500
Ariens 050236
Ariens 3450500
Dixie Chopper 50300
Exmark 116277
Gravely 03450500
Gravely 050236
Snapper 7079197
Snapper 7079446
Snapper 7079446YP
Snapper 79197
Snapper 7-9197
Snapper 79446
Snapper 7-9446
Toro 116277
Warner 5210-34
Warner 5210-50
Warner 5215-88
Stens X0172

Fits Models:
Ariens 934005, 934006, 934007, 934008, 934019 and 934020, HT series; 49065, 50267, 52271, 52628, 52626, 51385, 513386, 52627, 934010, 934011, 934012, 934013, 934014, 934016, 934017, 934018 and 934022, GEM series
Gravely 934005, 934006, 934007, 934008, 934019 and 934020, HT series; 49065, 50267, 52271, 52628, 52626, 51385, 513386, 52627, 934010, 934011, 934012, 934013, 934014, 934016, 934017, 934018 and 934022, GEM series
Snapper ZTR series 0-5
Toro 612-Z, Serial No. 1000001-1999999, 616-Z and 620-Z, Serial No. 1000001-5999999, 616-Z, Serial No. 3900001-4999999, and Z118, Serial No. 79000001-79999999

Specifications:

• Cool Coil Technology
• Does not fit all applications - Verify part number by referring to model specifications
• Heavy Duty "FatBoy Series" Upgrade
• Replaceable Pulley Bearing
• Super Smooth "Xtreme Precision" Machined Pulley
• To prevent premature clutch failure, follow the instruction sheet included with the clutch

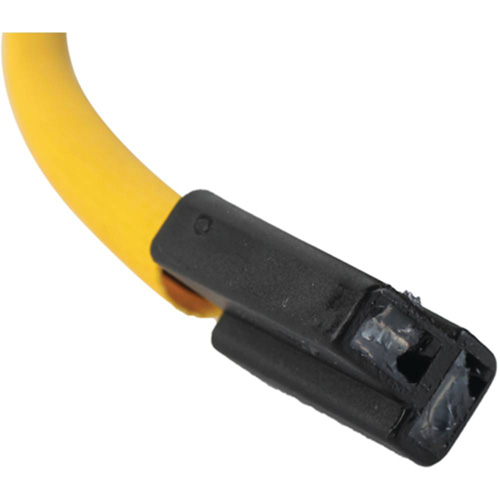

• Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
• Belt Width: 1/2" or 5/8"
• ID: 1"
• Pulley Diameter: 5-5/16"
• Rotation Direction: Clockwise

Additional Info:
Uses our XMC1003 Wire Harness Repair Kit
You may also like X0196-K PTO Clutch with Wiring Harness

Replaces Competitors Part Numbers:
Prime Line 7-06263, Oregon 33-118-1, NHC 274-2661, Stens 255-323X, WAIGLOBAL 19-196, Rotary 11070, Ratio Parts 030-792

Pack Size: 1

Part Number: X0196
