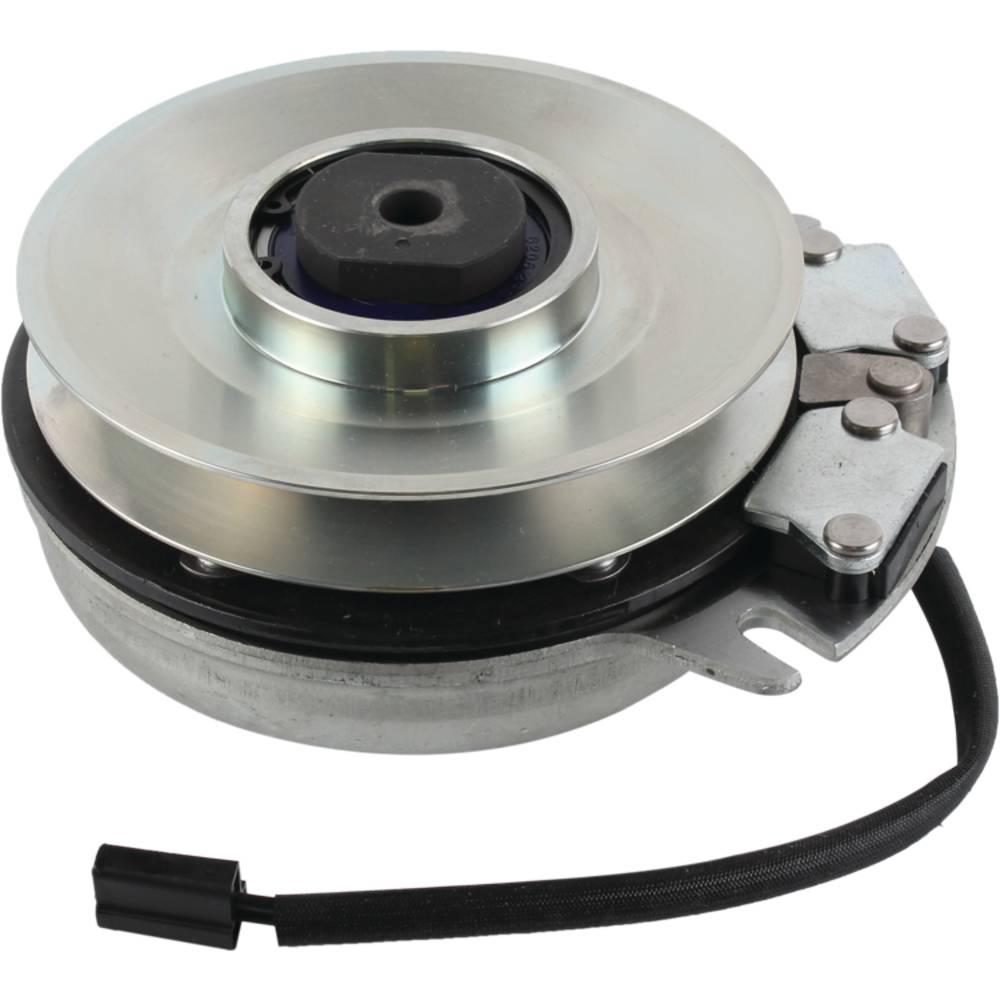

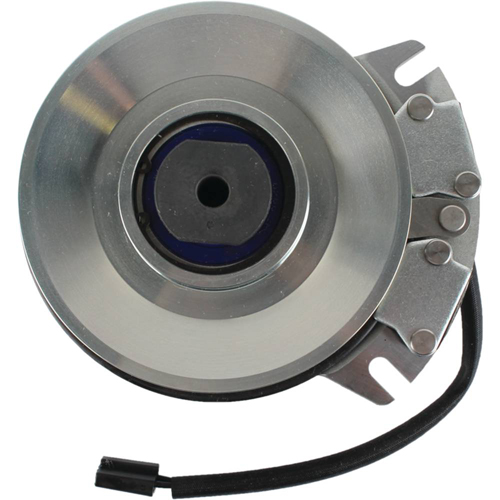

Xtreme PTO Clutch Ariens 09266700 / X0044

Replaces OEM Part Numbers:
Ariens 00389900
Ariens 09208000
Ariens 09232700
Ariens 09266700
Craftsman 00389900
Gravely 00389900
Gravely 09208000
Gravely 09232700
Gravely 09266700
Gravely 389900
Gravely 9232700
Great Dane GDA10122
Lastec 019603
Warner 5218-105
Warner 5218-117
Warner 5218-169
Warner 5218-299
Warner 5218-31
Warner 5218-86
Warner 5218-94
Wood-Mizer P604
Woods 00389900
Woods 09232700
Woods 09266700

Fits Models:
Ariens PM Series, Zoom 2050, Zoom 2552XL and Zoom 2560XL
Gravely PM252Z and PM series
Great Dane Chariot and Chariot LX
Lastec 325D and 325E, 1997-1998
Woods Mow 'n Machine M1950, M1952, M2050, M2250, M2560 and M2760

Specifications:

• Cool Coil Technology
• Does not fit all applications - Verify part number by referring to model specifications
• High performance bearings with high temperture grease
• Replaceable Pulley Bearing
• Stainless steel rivets and bands
• Super Smooth "Xtreme Precision" Machined Pulley
• To prevent premature clutch failure, follow the instruction sheet included with the clutch
• Belt Width: 1/2" or 5/8"
• ID: 1-1/8"

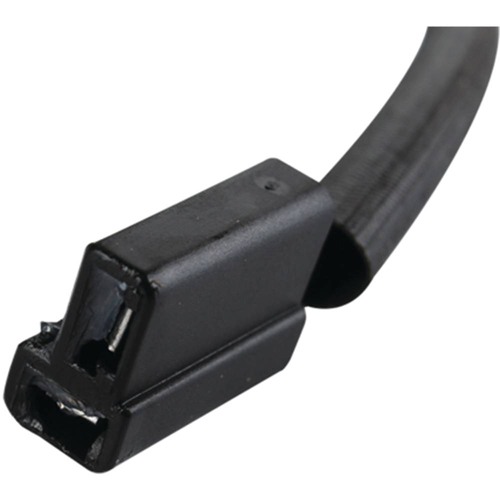

• Includes: Clutch side and mower side wire harnesses
• Pulley Diameter: 6"
• Rotation Direction: Counter Clockwise

Additional Info:
Use With Xmc1003 Wire Harness Repair Kit

Pack Size: 1

Part Number : X0044
