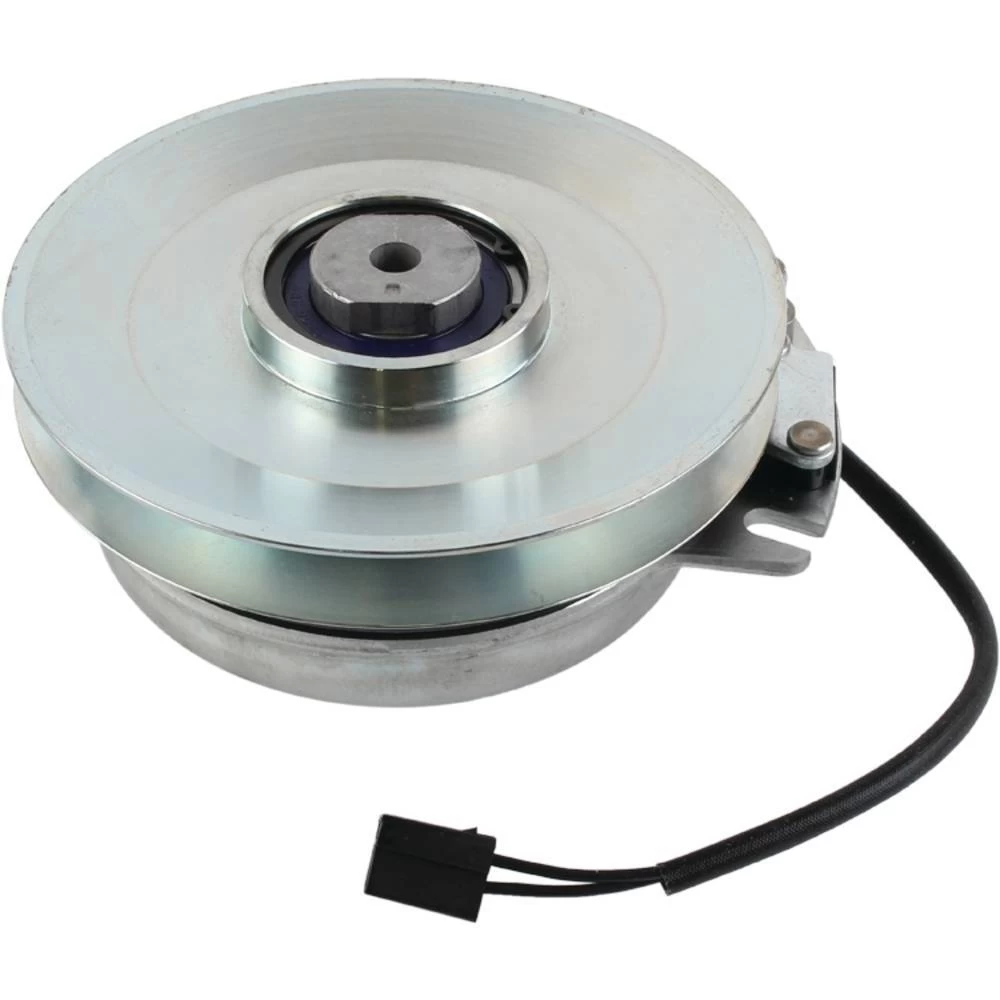

Xtreme PTO Clutch for Toro 109-9276 / X0017

Replaces OEM Part Numbers:
Encore 603078
Exmark 103-0690
Exmark 105-3630
Exmark 109-2916
Exmark 109-7036
Exmark 109-9276
Exmark 1-653048
Exmark 1-653292
Exmark 653048
Exmark 653292
Exmark E653048
Exmark E653292
Lawn-Boy 109-9276
Stens 255-599
Toro 103-0690
Toro 105-3630
Toro 109-2916
Toro 109-9276
Toro 125-4673
Toro 130-1849
Toro 130-4673
Toro 1-653048
Toro 1-653292
Toro 653048
Toro 653292
Toro E653048
Toro E653292
Warner 5218-109
Warner 5218-150
Warner 5218-16
Warner 5218-205
Warner 5218-215
Warner 5218-251
Warner 5218-296
Warner 5218-327
Warner 5218-335
Warner 5218-44
Warner 5218-49
Warner 5218-80
Warner 5218-80C
Wright Mfg. 71410013
Stens 255-599

Fits Models:
Encore Xtreme with 52" and 60" deck and Z series with 60" deck
Exmark Lazer Z CT, Serial No. 600,000 and higher, Lazer Z HP, Serial No. 160,000 and higher
Toro GrandStand 74549, 74553 and 74568TE, Serial No. 314000001 and lower, Z Master, Z400, Serial No. 290000001-310999999, Z441, Serial No. 250000001-270999999, Z449, Serial No. 250000001-270999999, Z450, Serial No. 250000001-280999999 and Z453, Serial No. 250000001-270999999
Wright Mfg. Sentar 3, Serial No. 26980 and higher

Specifications:

• Cool Coil Technology
• Does not fit all applications - Verify part number by referring to model specifications
• For mower side wiring harness purchase XMC1003
• High performance bearings with high temperture grease
• Replaceable Pulley Bearing
• Stainless steel rivets and bands
• Super Smooth "Xtreme Precision" Machined Pulley
• To prevent premature clutch failure, follow the instruction sheet included with the clutch
• Belt Width: 1/2" or 5/8"
• ID: 1"
• Includes: Clutch side integrated, water tight and impact resistant wire harness
• Pulley Diameter: 7-3/16"
• Rotation Direction: Counter Clockwise

Additional Info:
Use With Xmc1003 Wire Harness Repair Kit

Pack Size: 1

Part Number: X0017
