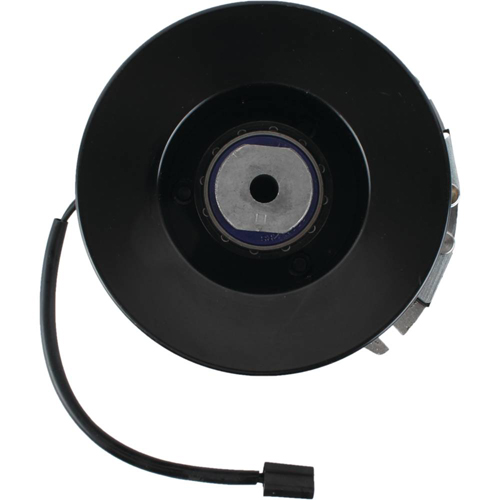

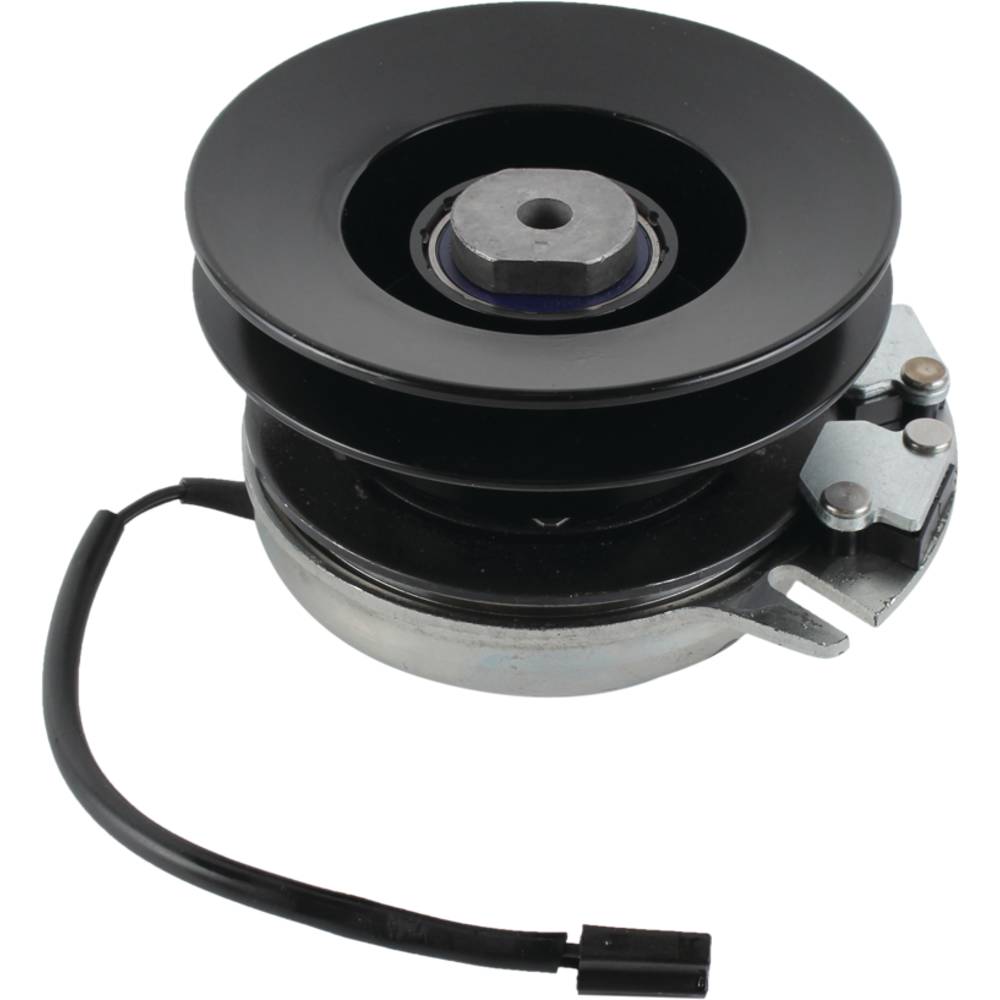

Xtreme PTO Clutch Ariens 03292300 / X0013

Replaces OEM Part Numbers:
Ariens 00617400
Ariens 03292300
Bolens 717-04163
Bolens 717-04163A
Bolens 917-04163
Bolens 917-04163A
Craftsman 717-04163
Craftsman 717-04163A
Craftsman 917-04163
Craftsman 917-04163A
Cub Cadet 717-04163
Cub Cadet 717-04163A
Cub Cadet 917-04163
Cub Cadet 917-04163A
Gravely 00617400
Gravely 03292300
MTD 717-04163
MTD 717-04163A
MTD 917-04163
MTD 917-04163A
Swisher 5217-43
Warner 5217-32
Warner 5217-33
Warner 5217-43
White 717-04163
White 717-04163A
White 917-04163
White 917-04163A

Fits Models:
Ariens HVZ1840, Zoom 1634, Zoom 1840 and Zoom 2350
Bolens L1046, L1050, LT1042, LT1045, LT1046, LT1050, SLT1550 and SLT1554
Cub Cadet LT1042, SLT1550 and SLT1554
Gravely 1734ZT, 2040YJ, 2040ZT, 2250ZT, 2350ZT, 2550YJ and ZTXL1734
MTD LT1042, SLT1550 and SLT1554

Specifications:

• Cool Coil Technology
• Does not fit all applications - Verify part number by referring to model specifications
• High performance bearings with high temperture grease
• Replaceable Pulley Bearing
• Stainless steel rivets and bands
• Super Smooth "Xtreme Precision" Machined Pulley
• To prevent premature clutch failure, follow the instruction sheet included with the clutch
• Belt Width: 1/2" or 5/8"
• ID: 1"

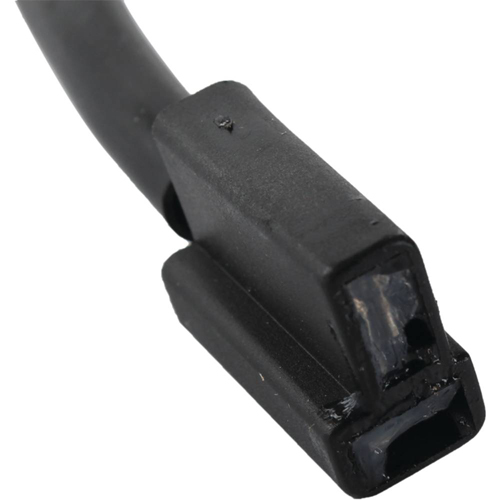

• Includes: Clutch side and mower side wire harnesses
• Pulley Diameter: 6"
• Rotation Direction: Counter Clockwise

Additional Info:
Use With Xmc1003 Wire Harness Repair Kit

Pack Size: 1

Part Number : X0013
