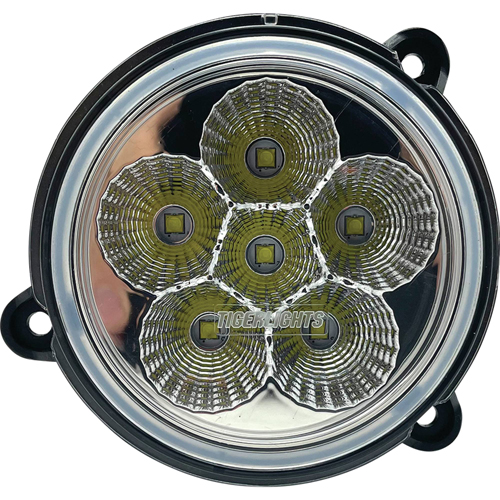

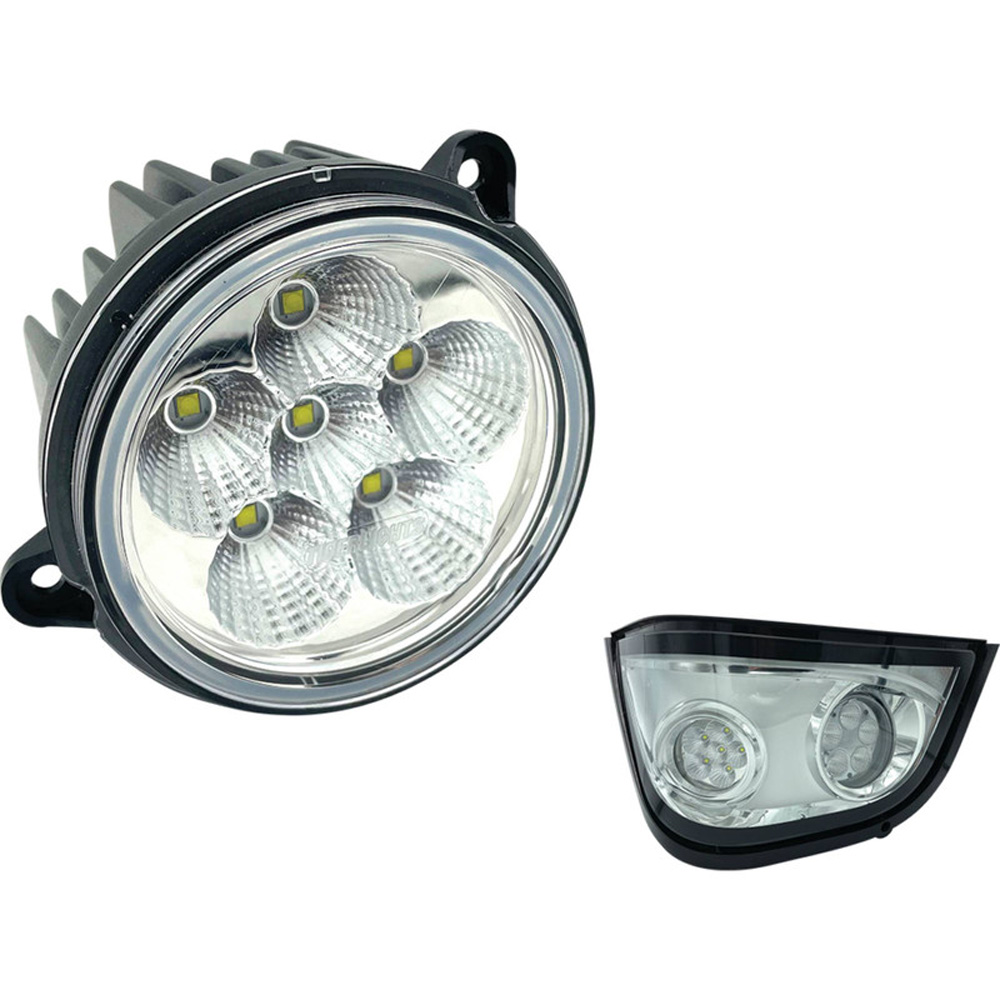

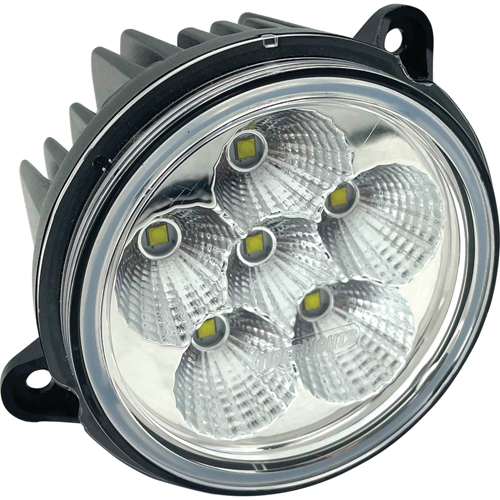

Tiger Lights LED Small Round Headlight Insert for John Deere R Series / TL8630

Replaces OEM Part Numbers:
John Deere AL206153
John Deere AL206154
John Deere RE288376
John Deere RE288377
John Deere RE296513
John Deere RE296514
John Deere RE296679
John Deere RE29680

Fits Models:
John Deere 4940, 6105M, 6105R, 6110M, 6110R, 6115M, 6115R, 6120M, 6120R, 6125M, 6125R, 6130M, 6130R, 6135M, 6135R, 6140M, 6140R, 6145M, 6145R, 6150M, 6150R, 6155M, 6155R, 6155RH, 6170M, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6210R, 6215R, 6230R, 6250R, 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 7R 210, 7R 230, 7R 250, 7R 270, 7R 290, 7R 310, 7R 330, 7R 350, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8360T, 8370R, 8370RT, 8400R, 9360R, 9370R, 9410R, 9420R, 9420RX, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX, R4023, R4030, R4038, R4040I, R4044, R4045, R4050I, R4060, R4140I, R4150I

Specifications:

• Plug and Play
• Replaces the smaller round reflector in the upper headlight
• Small round insert light for John Deere R series tractor
• This light does not replace the whole housing
• Uses original mounting bracket
• Amps: 1.660
• Depth: 2.470"
• Light Pattern: Flood
• Lumens: 2200
• OD: 3.490"
• Volt: 12-24
• Warranty: Limited Lifetime
• Watt: 20

Pack Size: 1

Part Number: TL8630
