LuK Clutch Kit for John Deere RE173314 / 1412-2009

Replaces OEM Part Numbers:
John Deere 628-3058-00
John Deere CH18554
John Deere RE173314
John Deere RE177574
John Deere RE211277
John Deere RE72534
John Deere RE72535
John Deere RE72826
John Deere RE72860
LuK 228011510
LuK 302816102
LuK 328037910
LuK 328043510
LuK 628305800

Fits Models:
John Deere 5200, 5210, 5300, 5310, 5310N, 5400, 5400N, 5415, 5415H, 5500, 5500N, 5510, 5510N, 5600, 5615, 5715, 5715HC

Specifications:

• 6 bolt, 6 lever
• Combination coil and diaphragm double pressure plate with safety PTO
• If replacing early design #RE66695, flywheel must be machined
• Measure disc thickness before purchasing - 7.6mm thickness
• Verify casting numbers on the pressure plate and disc
• Verify OEM part number
• Bearing OD 1: 100 mm
• Bearing OD 2: 75 mm
• Bearing THK 1: 18 mm
• Bearing THK 2: 16 mm
• Disc OD: 11"
• ID: 17 mm

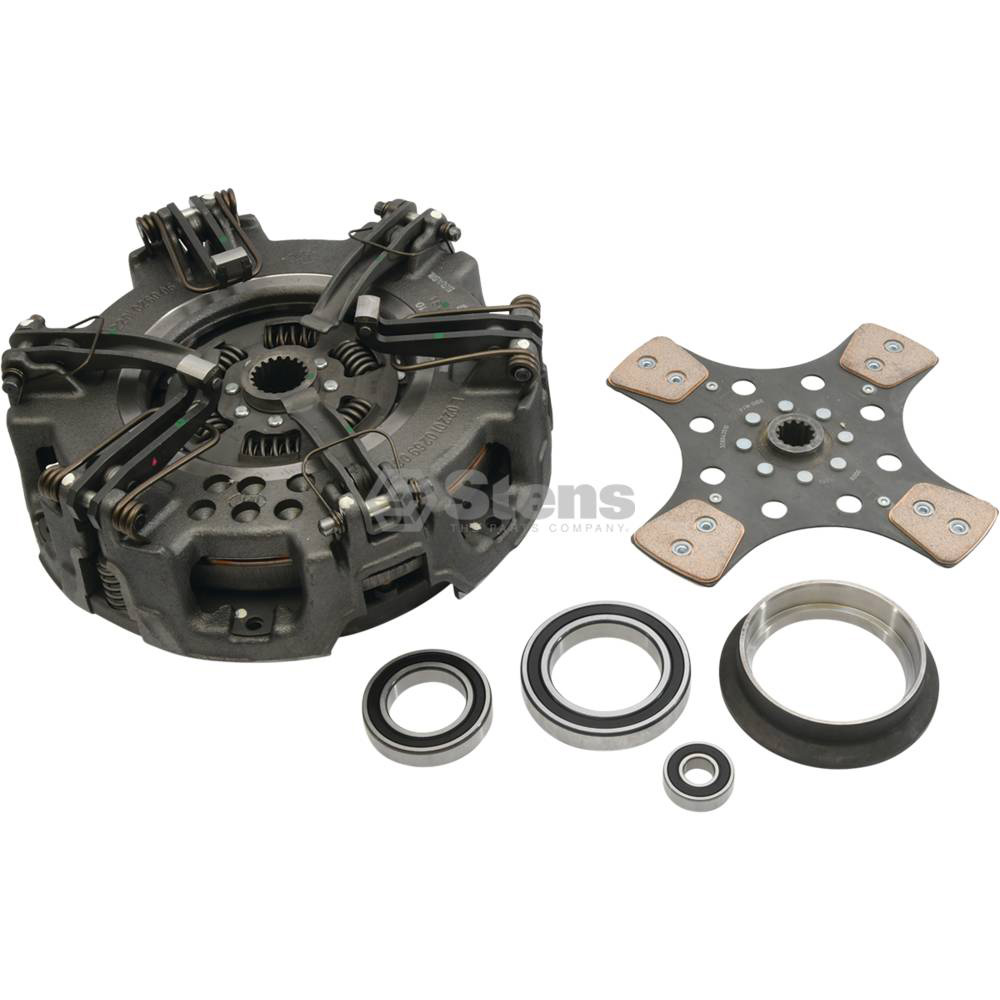

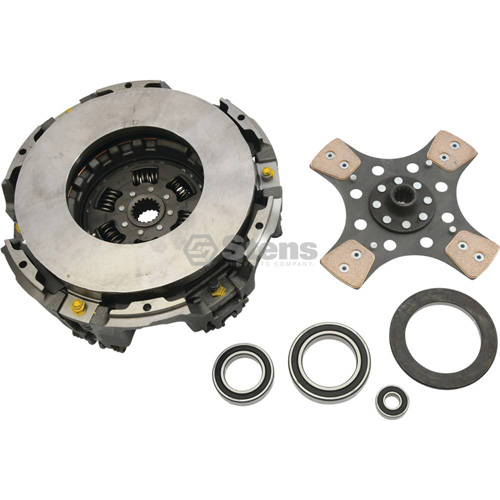

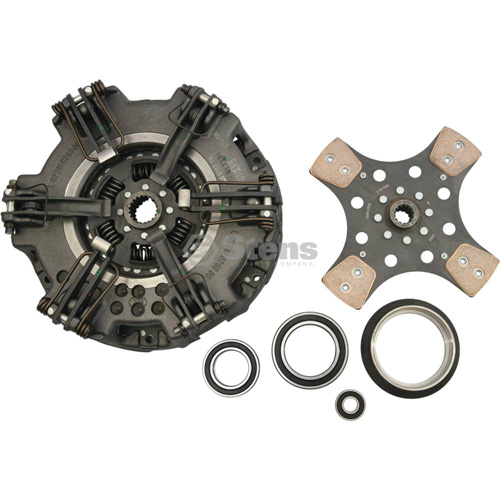

• Includes: Pressure plate, PTO disc, release bearings and pilot bearing
• Spline Count: 13
• Type: Cast iron

Additional Info:
Related to 1412-6056 Pressure Plate

Replaces Competitors Part Numbers:
SMA/Tisco TP-RE211277, A&I Products A-RE173314

Pack Size: 1

Part Number: 1412-2009
