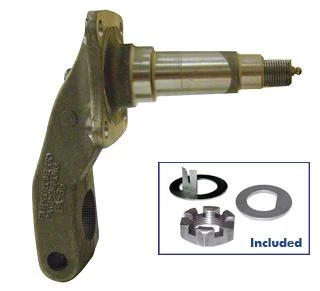

FA35 SPINDLE ARM FOR 3.5K FLEXRIDE

FA35 SPINDLE ARM FOR 3.5K FLEXRIDE
Your price: $59.95
FA-35 SPINDLE ARM FOR 3.5K FLEXRIDE

** THESE MEASUREMENTS ARE AFFILIATED WITH THE DIAGRAM BELOW **


STYLE - B
CAPACITY PER PAIR -  3,500 LBS.
HUB FACE OFFSET - 6.06
A - 16.44
B - 13.63
C - 11.625
D - 4.500
E - 5.63
F -  8 FOR 1/2 - 20
G - 1.75
H - 3.91 ( ADJUSTABLE ARM - STARTING ANGLE MUST BE WITHIN +10 AND -45 FROM THE HORIZONTAL LOAD )
I - 2.22
ARM CENTERS - 4.50
OUTER BEARING - 44649
INNER BEARING - 68149
REPLACEMENT SPINDLE # - 93125
BASE PLATE - 96099 ( BASE PLATES ARE SOLD INDIVIDUALLY - ORDER 2 PER PAIR )


RELATED ITEMS:

DESCRIPTION: HUB ASSEMBLY 545-#84

PART NO: 004545-H  - HUB ONLY

                  004545G  - GALVANIZED HUB W/ BEARING KIT

                   004545G-EZ  - GALVANIZED HUB W/ BEARING KIT & EZ-LUBE GREASE CAPS

                   004545-K - BEARING KIT ONLY FOR OUR 004545 HUB

                   004545-KEZ - BEARING KIT & EZ-LUBE GREASE CAPS ONLY FOR OUR 004545 HUB



64%
Details
Part Number:   093125
Your price: $59.95
