Triple Axle Hanger Kit for 1-3/4" Double Eye Springs / APTT3

Triple Axle Hanger Kit for 1-3/4" Double Eye Springs / APTT3
Triple Axle Hanger Kit for 1-3/4” Double Eye Springs / APTT3
Your price: $133.44

Triple Axle Trailer Hanger Kit for 1.75" Double Eye Springs / APTT3

Hanger Kit Includes:
4 x Hangers 2-1/2" Tall / 115918
4 x Hangers 1-1/2" Tall / 115917
4 x Equalizers 7-3/4" Curved, All 9/16" Holes / A2252CB
16 x Shackle Straps 2-5/8" Long / 115052
24 x Shackle Bolts, 9/16" x 3"/ 9163B
24 x Hex Lock Nuts 9/16"/ 916 DLN

Additional Information:

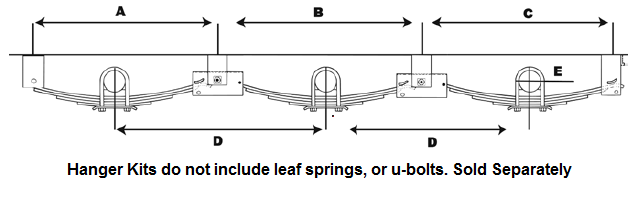

If you are using Leaf Springs part number 1020.
A= Distance Between Front and 1st- Center Hangers is: 24-3/4"
B= Distance Between Center Hangers is: 29"
C= Distance Between 2nd-Center and Rear Hangers is: 24-3/4"
D= Distance Between U-Bolts is: 28-1/2"
E= Distance Between the Center of the Axle and the Trailer Frame is: 4-1/2"
Axle Diameter: 1-3/4"

If you are using Leaf Springs part number PR722,

PR3, PR4, PR4B, PR5, PR6.
A= Distance Between Front and 1st- Center Hangers is: 29-1/2"
B= Distance Between Center Hangers is: 34"
C= Distance Between 2nd-Center and Rear Hangers is: 29-1/2"
D= Distance Between U-Bolts is: 34"
E= Distance Between the Center of the Axle and the Trailer Frame is: 3-1/2"
Axle Diameter is: 2-3/8"

Used for tripple axle trailers 2000 Lbs through 7000 Lbs using 1-3/4" wide double eye leaf springs

Part Number: APTT3
