Triple Axle Trailer Hanger Kit for 1.75" Double Eye Springs / APTT1

Hanger Kit Includes:
4 x Hangers 2-1/2" Tall / 115918
4 x Hangers 5-7/16" Tall (3/4" Bolt) / 115919
4 x Equalizers 8" Straight, 3/4" Center, 9/16" End Holes / A2251B3
16 x Shackle Straps 2-5/8" Long / 115052
20 x Shackle Bolts 9/16" x 3"/ 9163B
20 x Hex Lock Nuts 9/16"/ 916 DLN
4 x Wet Equalizer Bolts 3/4" x 3-1/2"/ 126A1LN
4 x Castle Nuts 3/4"/ 165093
4 x Cotter Pins 2-1/4"/ 165649
4 x Grease Zerks, 1/8" MPT / 1610

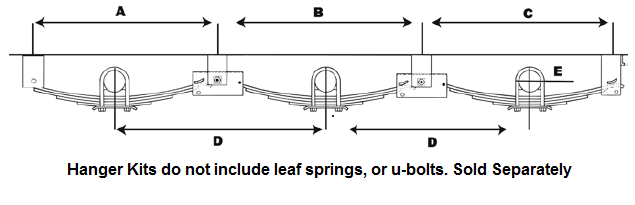

Additional Information:
If you are using Leaf Springs part number 1020.
A= Distance Between Front and 1st- Center Hangers is: 24-3/4"
B= Distance Between Center Hangers is: 29"
C= Distance Between 2nd-Center and Rear Hangers is: 24-3/4"
D= Distance Between U-Bolts is: 28-1/2"
E= Distance Between the Center of the Axle and the Trailer Frame is: 4-1/2"
Axle Diameter: 1-3/4"

If you are using Leaf Springs part number PR722,

PR3, PR4, PR4B, PR5, PR6.
A= Distance Between Front and 1st- Center Hangers is: 29-1/2"
B= Distance Between Center Hangers is: 34 "
C= Distance Between 2nd-Center and Rear Hangers is: 29-1/2"
D= Distance Between U-Bolts is: 34"
E= Distance Between the Center of the Axle and the Trailer Frame is: 4"
Axle Diameter is: 2-3/8"

Used for tripple axle trailers 2000 Lbs through 7000 Lbs using 1-3/4" wide double eye leaf springs

 Part Number: APTT1
