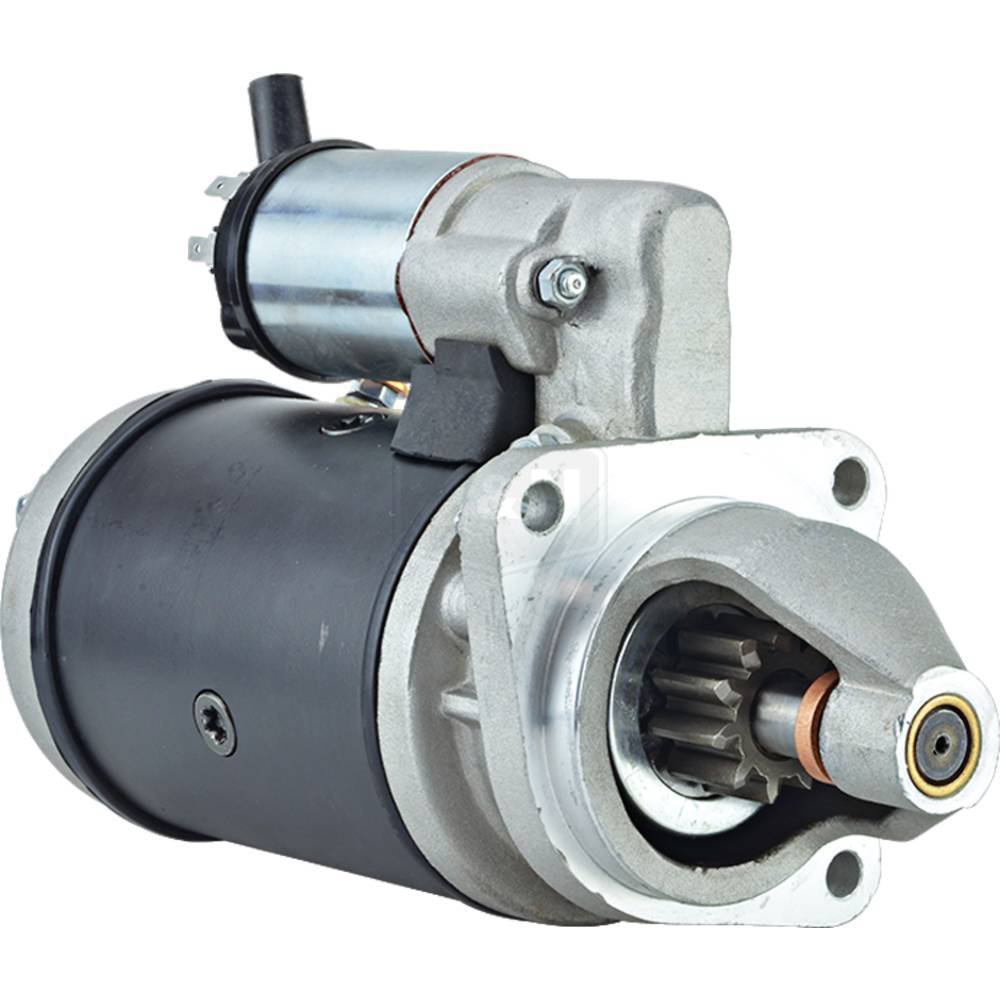

J&N Electrical Products Starter for LUCAS 12V 10T STR / 410-30037

Replaces OEM Part Numbers:
Clark Equipment 064342112
Delco DRS3336
J&N Electrical Products 410-30003
Komatsu 766-669-73
Lester 17644
Lucas Electric 26148
Lucas Electric 26157
Lucas Electric 26196
Lucas Electric 26196A
Lucas Electric 26196B
Lucas Electric 26282A
Lucas Electric 26283
Lucas Electric 26283A
Lucas Electric 26283B
Lucas Electric 26283C
Lucas Electric 26283D
Lucas Electric 26283E
Lucas Electric 26283F
Lucas Electric 26283H
Lucas Electric 26283I
Lucas Electric 26283J
Lucas Electric 26283K
Lucas Electric 26375
Lucas Electric 26375A
Lucas Electric 26375B
Lucas Electric 26375C
Lucas Electric 26375D
Lucas Electric 26375E
Lucas Electric 26422
Lucas Electric 26435
Lucas Electric 27417
Lucas Electric 27417A
Lucas Electric 27417B
Lucas Electric 27417C
Lucas Electric 27417D
Lucas Electric 27435
Lucas Electric 27435A
Lucas Electric 27478
Lucas Electric 27478A
Lucas Electric 27478B
Lucas Electric 27486
Lucas Electric 27486A
Lucas Electric 63227417
Lucas Electric LRS00124
Lucas Electric LRS124
Lucas Electric NSB503
Lucas Electric S4539
Marelli 63227417
Marelli 63227486
Marelli MSN180
Marelli MSR180
Massey Ferguson 1447586M91
Massey Ferguson 1447-586-M91
Massey Ferguson 897269M1
Massey Ferguson 8972-69-M1
Mercury Marine 8M6007377
Perkins 2873121
Perkins 2873121T
Perkins 2873125
Perkins 2873141
Perkins 2873A010
Perkins 2873A010R
Perkins 2873A102
Perkins 2873D003
Perkins 31179

Specifications:

• Lester: 17644
• Volt: 12
• Power: 2.200 kw
• HP: 2.950
• Condition: New
• Rotation Direction: Clockwise
• Electric Starter Type: Direct Drive (DD)
• Number of Teeth: 10
• Gear OD: 1.551"
• Gear OD: 39.400mm
• Length: 12.047"
• Length: 306 mm
• Mount Hole ID 1: 10.400mm
• Mount Hole 1 Type: Unthreaded
• Mount Hole 2 Type: Unthreaded
• Mount Hole ID 3: 10.400mm
• Mount Hole 3 Type: Unthreaded
• Registry OD: 3.504"
• Registry OD: 89mm
• Warranty: 1 Year
• M8-1.25 B+ STUD With Attached Spade [email protected] Motor Stud@ Spade Type S Terminal
• SAE J1171 Certified
• Mounting Ear Distance 1: 3.508"
• Mounting Ear Distance 1: 89.100mm
• Mounting Ear Distance 2: 3.508"
• Mounting Ear Distance 2: 89.100mm
• Mounting Ear Distance 3: 0.886"
• Mounting Ear Distance 3: 22.500mm

Pack Size: 1

Part Number: 410-30037
