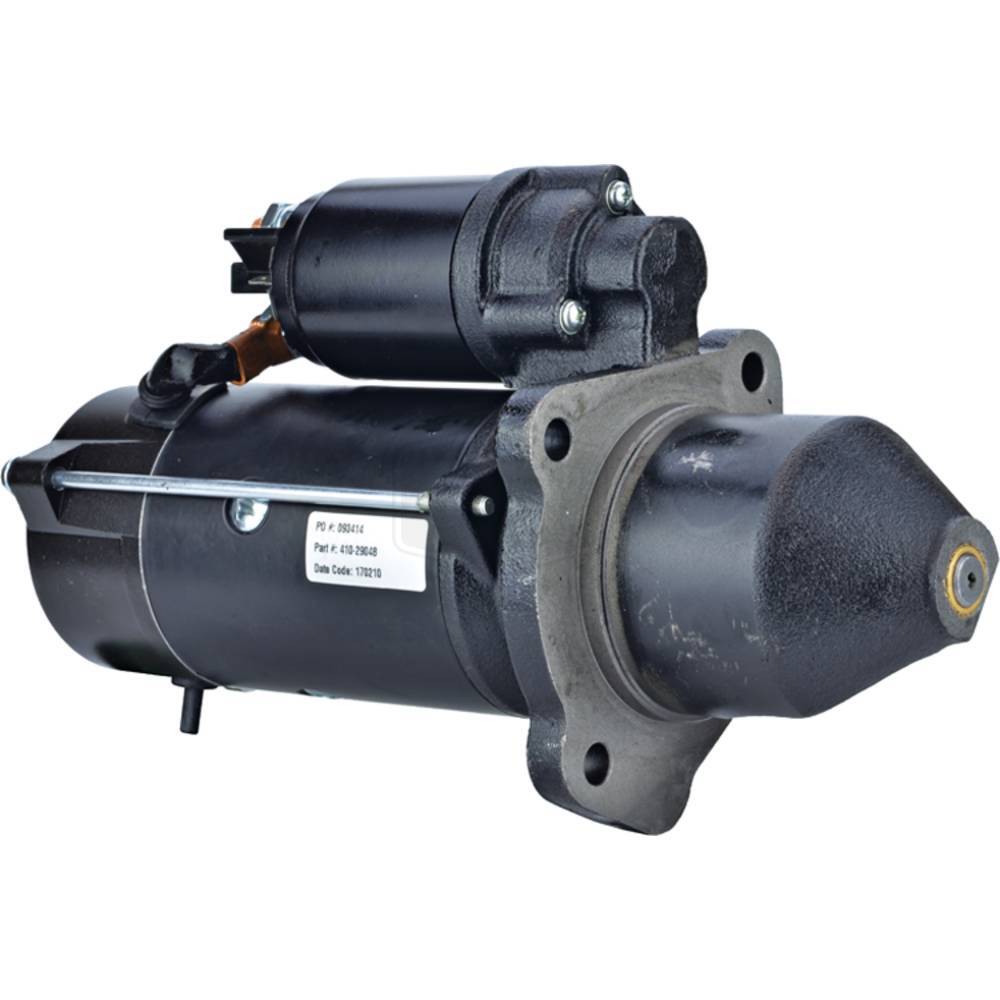

J&N Electrical Products Starter for Mahle 12V 10T Str / 410-29048

J&N Electrical Products Starter for Mahle 12V 10T Str / 410-29048
View detailed images (6)
J&N Electrical Mahle 12V 10T Starter Additional View 1 J&N Electrical Mahle 12V 10T Starter Additional View 2 J&N Electrical Mahle 12V 10T Starter Additional View 3 J&N Electrical Mahle 12V 10T Starter Additional View 4 J&N Electrical Mahle 12V 10T Starter Additional View 5 J&N Electrical Mahle 12V 10T Starter Additional View 6
Your price: $370.37

J&N Electrical Products Starter for Mahle 12V 10T Str / 410-29048

Replaces OEM Part Numbers:
Arrowhead MS416
Bobcat 6632415
Delco DRS0067
John Deere 503226
John Deere AL70852
John Deere AL81154
John Deere RE50322
Lester 18361IK
Letrika/Iskra 11.131.237
Letrika/Iskra AZF4570
Letrika/Iskra IS1157
Lucas Electric LRS01622
Lucas Electric LRS03898
Mahle 11.131.237
Mahle AZF4570
Mahle IS1157
Mahle MS416

Specifications:
  • Lester: 18361IK
  • Family: Letrika/MAHLE AZF45
  • Volt: 12
  • Power: 4.200 kw
  • HP: 5.632
  • Condition: New
  • Rotation Direction: Clockwise
  • Electric Starter Type: Planetary Gear Reduction (PLGR)
  • Number of Teeth: 10
  • Gear OD: 1.559"
  • Gear OD: 39.600mm
  • Mount Hole ID 1: 11mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Mount Hole ID 3: 11mm
  • Mount Hole 3 Type: Unthreaded
  • Warranty: 1 Year
  • M10 B+ & Motor Studs @Spade S Terminal @89mm Registry OD
Pack Size: 1

Part Number: 410-29048
33%
Details
Part Number:   410-29048
Your price: $370.37
