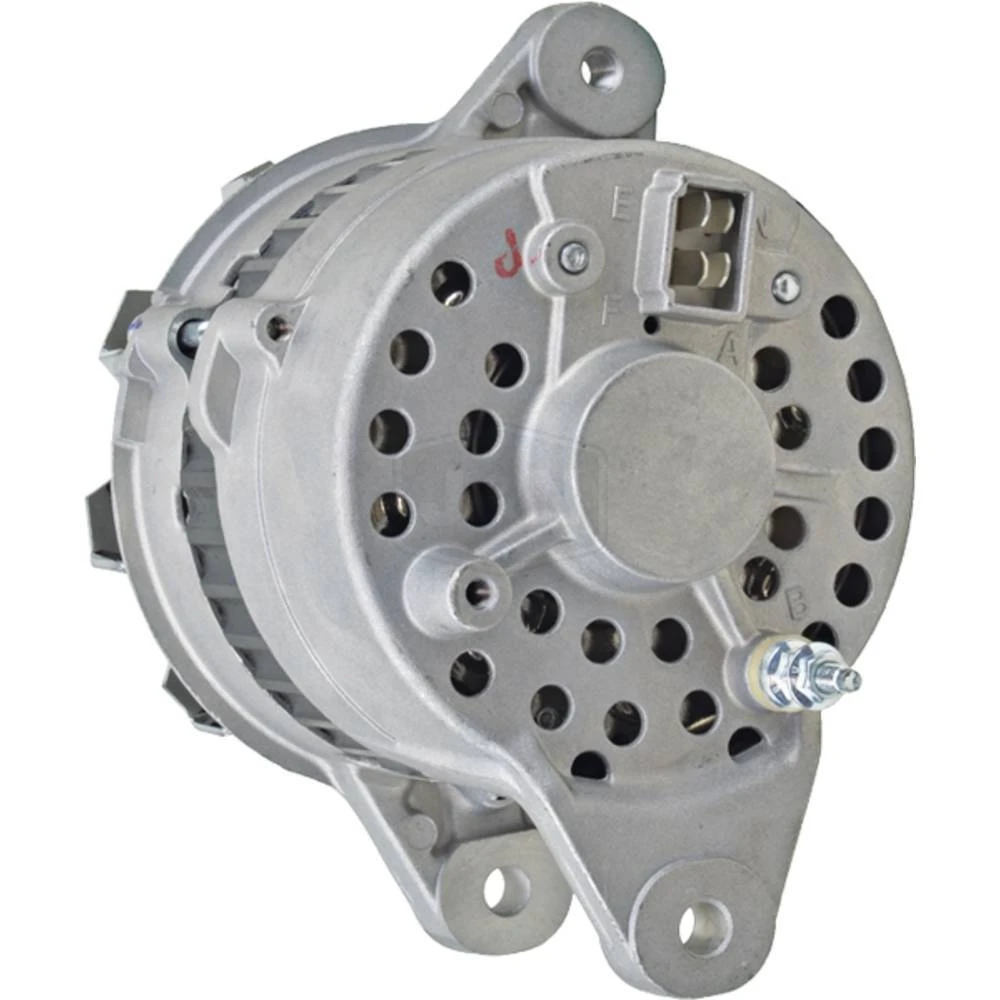

J&N Electrical Products Alternator for Mitsubishi 12V 35A / 400-48100

Replaces OEM Part Numbers:
Arrowhead AH2035M4
Arrowhead AHI0089
CaseIH 1273116C91
International 1273116C91
J&N Electrical Products 400-48100
Lester 12132
Lester 14212
Lucas Electric LRA01091
Mitsubishi A1T22074
Mitsubishi AH2035M
Mitsubishi AH2035M4
Mitsubishi MD017635
Mitsubishi MD017645
Toro 43-0390

Specifications:

• Lester: 12132, 14212
• Volt: 12
• Amps: 35
• Condition: New
• Regulator Clock: 12:30
• Rotation Direction: Clockwise
• Mount Hole ID 1: M8x1.25
• Mount Hole 1 Type: Threaded
• Mount Hole 2 Type: Unthreaded
• Mount Hole ID 3: 8.600mm
• Mount Hole 3 Type: Unthreaded
• Mounting Ear Thickness: 0.516"
• Mounting Ear Thickness: 13.100mm
• Mounting Ear 2 Thickness: 0.516"
• Mounting Ear 2 Thickness: 13.100mm
• Mounting Ear 3 Thickness: 0.516"
• Mounting Ear 3 Thickness: 13.100mm
• Fan Location: External
• Regulator Location: External
• Terminal ID 2: B+
• Terminal 2 Size: M5x0.8
• Polarity: Negative
• Number of Grooves: 1
• Pulley Type: Solid
• Pulley Outer Diameter: 2.437"
• Pulley Outer Diameter: 61.900mm
• Plug Code "E, N, F, A"

Pack Size: 1

Part Number: 400-48100
