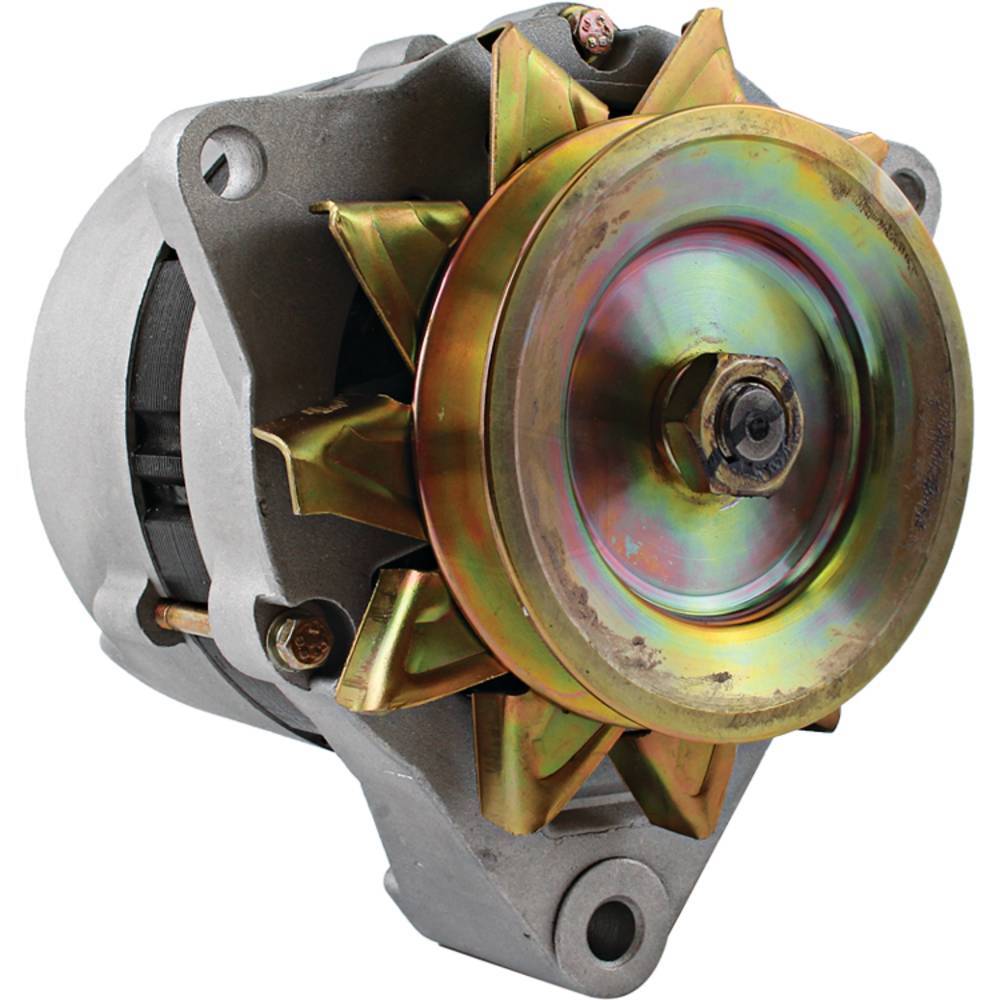

J&N Electrical Products Alternator for Magneton 12V 55A Alt / 400-42009

J&N Electrical Products Alternator for Magneton 12V 55A Alt / 400-42009
View detailed images (6)
J&N Electrical Magneton 12V 55A Alternator Additional View 1 J&N Electrical Magneton 12V 55A Alternator Additional View 2 J&N Electrical Magneton 12V 55A Alternator Additional View 3 J&N Electrical Magneton 12V 55A Alternator Additional View 4 J&N Electrical Magneton 12V 55A Alternator Additional View 5 J&N Electrical Magneton 12V 55A Alternator Additional View 6
Your price: $152.70

J&N Electrical Products Alternator for Magneton 12V 55A Alt / 400-42009

Replaces OEM Part Numbers:
Lester 12553
Lucas Electric LRA02356
Magneton 443-113-516-061
Magneton 443-113-516-184
Magneton 9516051
Magneton 9516061
Zetor 93-9950

Fits Models:
Zetor 10111, 10211, 10245, 14145, 14245, 16145, 16245, 8211, 8245, 9111, 9145, 9211 and 9245, 10145, 8111 and 8145 Crystal

Specifications:
  • Lester: 12553
  • Volt: 12
  • Amps: 55
  • Condition: New
  • Regulator Clock: 2:00
  • Rotation Direction: Clockwise
  • Mount Hole ID 1: 8.500mm
  • Mount Hole 1 Type: Unthreaded
  • Mount Hole 2 Type: Unthreaded
  • Mount Hole ID 3: 10.200mm
  • Mount Hole 3 Type: Unthreaded
  • Mounting Ear Thickness: 0.457"
  • Mounting Ear Thickness: 11.600mm
  • Mounting Ear 2 Thickness: 0.457"
  • Mounting Ear 2 Thickness: 11.600mm
  • Mounting Ear 3 Thickness: 1.969"
  • Mounting Ear 3 Thickness: 50mm
  • Fan Location: External
  • Regulator Location: Internal
  • Terminal ID 2: B+
  • Terminal 2 Size: M6x1.00
  • Terminal ID 3: D+
  • Terminal 3 Size: Spade
  • Polarity: Negative
  • Number of Grooves: 1
  • Pulley Type: Solid
  • Pulley Outer Diameter: 3.902"
  • Pulley Outer Diameter: 99.100mm
  • May require re-using of the OEM pulley for some applications
Pack Size: 1

Part Number: 400-42009
