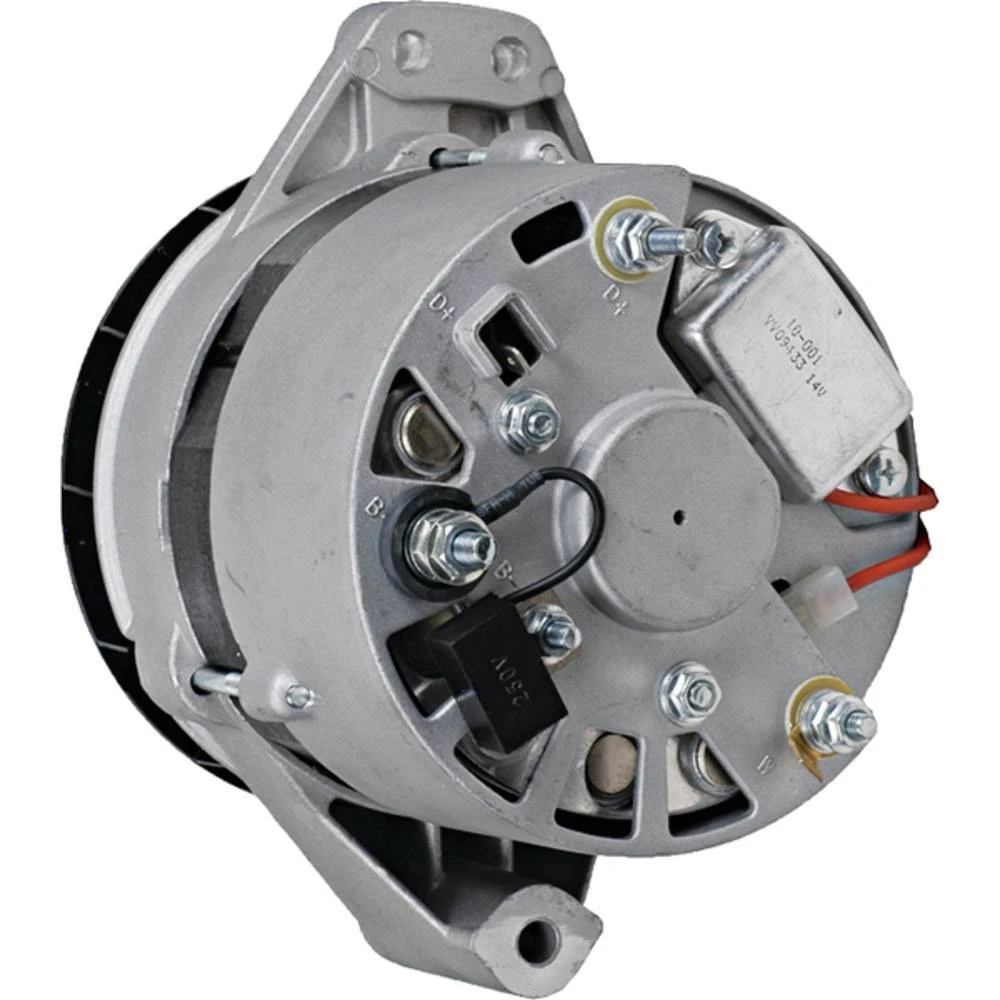

J&N Electrical Products Alternator for Magneton 12V 55A Alt / 400-42000

Replaces OEM Part Numbers:
Arrowhead 400-42011
Arrowhead AMP0001
J&N Electrical Products 400-42000
J&N Electrical Products 400-42008
J&N Electrical Products 400-42011
JANNCO 400-42000R
John Deere RE500502
John Deere RE507960
John Deere RE57960
John Deere RE57961
Lester 12140
Lester 12366
Magneton 443-113-515-765
Magneton 443-113-515-768
Magneton 443-113-516-760
Magneton 443-113-516-761
Magneton 443-113-516-762
Magneton 443-113-516-763
Magneton 443-113-516-764
Magneton 443-113-516-765
Magneton 443-115-516-762
Magneton 443-116-516-763
Magneton 9-515-511
Magneton 9-516-762
Magneton 9-516-763
Magneton 9516765
Magneton 9-516-765

Specifications:

• Lester: 12140, 12366
• Volt: 12
• Amps: 55
• Condition: New
• Regulator Clock: 2:00
• Quality Type: Standard
• Rotation Direction: Clockwise
• Mount Hole ID 1: 8.300mm
• Mount Hole 1 Type: Unthreaded
• Mount Hole 2 Type: Unthreaded
• Mount Hole ID 3: 8.300mm
• Mount Hole 3 Type: Unthreaded
• Mounting Ear Thickness: 0.657"
• Mounting Ear Thickness: 16.700mm
• Mounting Ear 2 Thickness: 0.657"
• Mounting Ear 2 Thickness: 16.700mm
• Mounting Ear 3 Thickness: 2"
• Mounting Ear 3 Thickness: 50.800mm
• Fan Location: External
• Regulator Location: Internal
• Terminal ID 2: B+
• Terminal 2 Size: M6x1.00
• Terminal ID 3: D+
• Terminal 3 Size: M5x0.8
• Terminal ID 4: D+
• Terminal 4 Size: Spade
• Terminal ID 5: W
• Terminal 5 Size: M5x0.8 Spade Combo
• Terminal ID 6: B-
• Terminal 6 Size: M5x0.8
• Polarity: Negative
• Number of Grooves: 1
• Pulley Type: Solid
• Pulley Outer Diameter: 3.343"
• Pulley Outer Diameter: 84.900mm
• Warranty: 1 Year

Pack Size: 1

Part Number: 400-42000
